NYA (VDE) – H07V-U – H07V-R (TSE)
Product Description

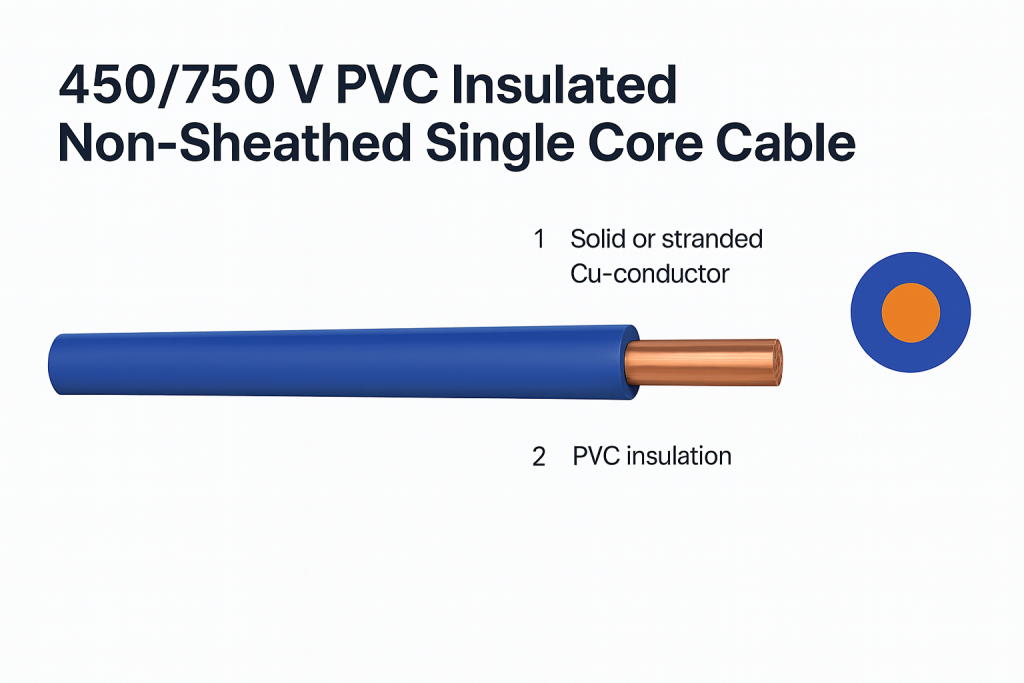

450/750 V PVC insulated non-sheathed single core cables are designed for fixed installations in residential, commercial, and industrial buildings. These cables provide high electrical reliability, mechanical strength, and safety for low-voltage applications where durable and standardized wiring solutions are required. They are suitable for installation in conduits, trunking systems, distribution panels, and switchboards, offering excellent performance in indoor environments.
Applications
- Fixed electrical installations
- Distribution boards and control panels
- Indoor wiring systems
- Conduits and cable trunking
- Residential, commercial, and industrial buildings
Advantages
- High-quality copper conductor
- Strong and durable PVC insulation
- Easy installation and handling
- Reliable performance in fixed wiring systems
- Suitable for demanding electrical installations
| Nominal Cross-section (mm2) | Cable Type (Conductor Structure) | Approx. Overall Diameter (mm) | Approx. Net Weight (kg/km) | Max. Conductor Resistance at 20∘C (Ω/km) | Current Carrying Capacity (A)* |
| 1.5 | H07V-U (Solid) | 2.8 | 20 | 12.1 | 24 |
| 2.5 | H07V-U (Solid) | 3.4 | 32 | 7.41 | 32 |
| 4 | H07V-U (Solid) | 3.9 | 46 | 4.61 | 42 |
| 6 | H07V-U (Solid) | 4.4 | 65 | 3.08 | 54 |
| 10 | H07V-R (Stranded) | 5.7 | 110 | 1.83 | 73 |
| 16 | H07V-R (Stranded) | 6.8 | 165 | 1.15 | 98 |
| 25 | H07V-R (Stranded) | 8.4 | 255 | 0.727 | 129 |
| 35 | H07V-R (Stranded) | 9.4 | 345 | 0.524 | 158 |
| 50 | H07V-R (Stranded) | 11.2 | 475 | 0.387 | 198 |
| 70 | H07V-R (Stranded) | 12.8 | 660 | 0.268 | 245 |
| 95 | H07V-R (Stranded) | 15.0 | 910 | 0.193 | 292 |
| 120 | H07V-R (Stranded) | 16.5 | 1140 | 0.153 | 344 |
| 150 | H07V-R (Stranded) | 18.4 | 1410 | 0.124 | 391 |
| 185 | H07V-R (Stranded) | 20.8 | 1750 | 0.0991 | 448 |
| 240 | H07V-R (Stranded) | 23.6 | 2310 | 0.0754 | 528 |
*Current carrying capacity values are indicative and may vary depending on installation conditions, ambient temperature, and applicable standards.
Additional Technical Information
| Parameter | Value |
|---|---|
| Rated Voltage | 450/750 V |
| Test Voltage | 2500 V |
| Maximum Operating Temperature | +70°C |
| Short Circuit Temperature | +160°C |
| Insulation Material | PVC |
| Conductor Material | Annealed Copper |
| Minimum Bending Radius | 4 × Cable Diameter |
| Installation Temperature | Minimum -5°C |
Applicable Standards
- IEC 60227
- IEC 60332-1-2
- VDE 0281
- TSE
- CE
Installation Notes
- Suitable for installation in conduits, trunking, and distribution panels
- Intended for fixed installation only
- Not suitable for direct burial or outdoor use without additional protection
